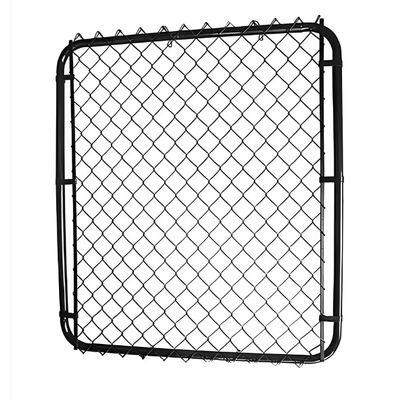

PVC Coated 2.0M Height Metal Wire Mesh Fencing With Frame

  • PVC Coated 2.0M Height Metal Wire Mesh Fencing With Frame
  • PVC Coated 2.0M Height Metal Wire Mesh Fencing With Frame
  • PVC Coated 2.0M Height Metal Wire Mesh Fencing With Frame
  • PVC Coated 2.0M Height Metal Wire Mesh Fencing With Frame
Tempat asal Hebei, Tiongkok
Nama merek LaiDi
Sertifikasi ISO9001:2015
Nomor model M01
Kuantitas min Order 500 meter persegi
Harga $5-$200
Kemasan rincian Palet logam
Waktu pengiriman 15-20 hari
Syarat-syarat pembayaran L/C,T/T
Menyediakan kemampuan 1000 meter persegi per hari
Detail produk
Nama Produk Pagar Wire Mesh Logam Bahan Lembaran baja karbon rendah
Tempat asal Hebei, Tiongkok Sertifikat ISO9001
Teknik Pengelasan Fungsi Bukti air
Ukuran Disesuaikan Warna Hitam atau Disesuaikan
Ukuran Panel 1,8x3M jenis posting pos persegi
Menyoroti

PVC coated metal wire mesh fencing

,

2.0M height metal wire fence

,

framed wire mesh fencing
Tinggalkan pesan
Deskripsi Produk
PVC Coated 2.0M Height Metal Wire Mesh Fencing With Frame
Product Specifications
Attribute Value
Product Name Metal wire mesh fence
Material Low carbon steel sheet
Place of Origin Hebei, China
Certificate ISO9001
Technique Welding
Function Water proof
Size Customized
Color Black or customized
Panel Size 1.8x3M
Post Type Square Post
Product Description

The 3D Curved Wire Mesh Fence Panel is a type of welded steel wire mesh constructed from high-quality low-carbon galvanized steel wire and connected to metal posts. This fence panel exhibits characteristics of high strength, excellent rigidity, an aesthetically pleasing appearance, broad visibility, ease of installation, effective theft prevention, and a smooth mesh surface that enhances visual appeal.

Technical Specifications
Parameter Details
Wire diameter after PVC coating 4.5mm-5.5mm
Mesh size 60mm x 60mm, around with double wire
Maximum mesh sheet size 2.3mm x 3m
Standing bar Steel pipe, diameter 60mm, thickness 2mm
Attachment Rain hat, connection clamping, and anti theft screw
Connection style Clamping
Available Options
Option Variations
Mesh Opening 50x100mm/50x150mm/50x200mm/55x200mm/75x150mm
Wire Diameter 3.0/3.5/4/4.5/5.0mm
Panel Height 0.6m-3.0m (Suggested size: 2m/2.4m/3m)
Panel Width 2.0m-3.0m (Suggested size: 2m/2.5m/2.9m)
Post Type Round Post: 48x1.5/2.0mm 60x1.5/2.0mm
Square Post (SHS): 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm
Rectangular Post (RHS): 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm
Surface Treatment Hot dipped galvanized, galvanized + powder coated, galvanized + PVC coating
Color RAL 6005 green, RAL 7016 gray, All RAL colors can be customized
The fence can be customized according to your requirements if above specifications don't meet your needs.
Product Features
  • Simple structure with beautiful appearance
  • Easy to transport and install
  • Well adapted to mountainous areas
  • Cost-effective for large quantity use
Product Applications

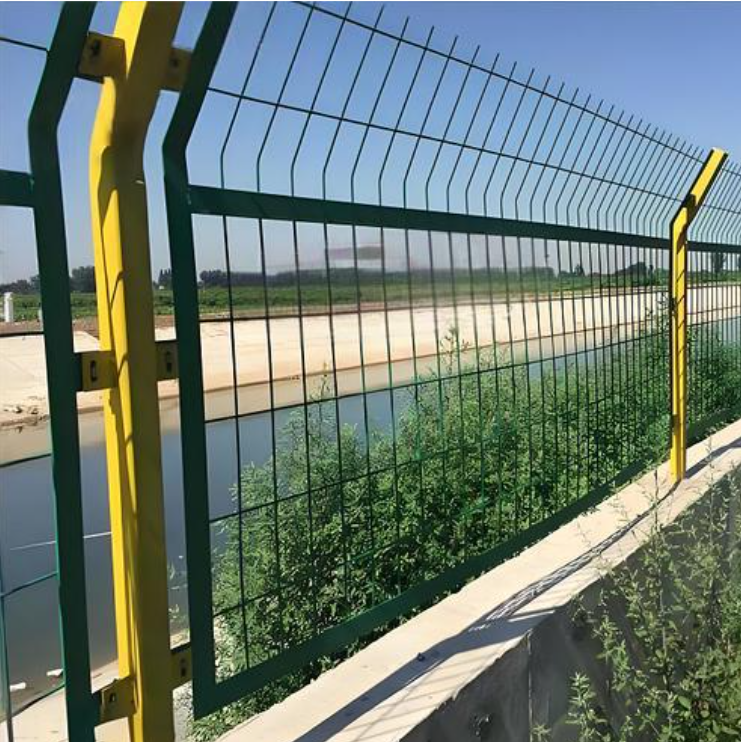

PVC Coated 2.0M Height Metal Wire Mesh Fencing With Frame 0 PVC Coated 2.0M Height Metal Wire Mesh Fencing With Frame 1
Frequently Asked Questions
When can I get the price?

We usually quote within 12 hours after we get the inquiry.

How can I get a sample to check your quality?

After price confirmation, you can request samples to check our quality.

Can you do the design for us?

Yes. We have a professional team with rich experience in packaging box design and manufacturing.

How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.

What about the lead time for mass production?

It depends on the order quantity and the season you place the order. The lead time of MOQ is about 7 days.
